Showing 1–12 of 33 results

Control Flex Cables | YY | CY | SY | LIYCY | LIYY | LIYCY TP | PVC | PUR | LSOH | Flex’s | 218*Y | 318*Y | 318*B | Olflex Cables | KU cables | Unidrall

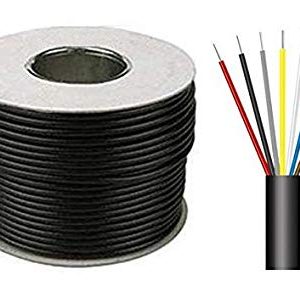

  • 3187B – 0.75 mm – LSZH / LSZH

    This 318B cable is LSZH / LSZH ( Low Smoke Zero Halogen ) H05z1z1-F
    Number of cores – 7
    Conductor – 0.75 mm
    Available in Black or White
    Reel Size – 100 Mtrs

  • KU1500C - UL cUL approved Screened Cables - CY UL

    CY – UL cUL Approved -KU1500C – PVC/PVC

    UL/cUL/Ce Approved Cable – KU1500C – UL21179 – 1000V + 90°C – Screened PVC/PVC

    • UL Approved Cables conform to UL21179
    • 1000V Rated
    • TCWB Screen
    • -30/+90 degrees fixed & -5/+90 Flexing
    • Range from 0.5 to 50 mm
  • KU2000C - Screened UL c UL HAR approved Cables

    CY – UL cUL HAR Approved -KU2000C – PVC/PVC

    UL/cUL/Ce/HAR Approved Cable – KU2000C – UL21179 – 1000V + 90°C – Screened PVC/PVC

    • UL /cUL /Ce / HAR approved ( H05VV5-F )
    • TCWB Screen
    • 1000V Rated
    • -30/+90 degrees fixed -5/+90 Flexing
    • Range from 0.5 to 2.5 mm
  • ATEX CY Cables Blue Sheath Screened - KU500C ATEX

    CY Control Flex Cable -ATEX-KU500C Blue PVC / PVC

    CY Control Cables Atex – KU500C ATEX – PVC / PVC – Number Coded Cores

    • These screened cables offer increased durability under harsh conditions thanks to an enhanced oil resistant sheath and non-fire propagation materials
    • CEI20-22/II & IEC60332 Cat A Resistance to oil IEC CEI EN 60811-2-1 and water absorption to IEC CEI EN 60811-1-3
    • The cable has a blue outer sheath making it suitable to intrinsically safe circuits
  • CY Control flex Cable - KU500C

    CY Control Flex Cable -KU500C – PVC / PVC

    CY Control Cables -KU500C – PVC / PVC – Number Coded Cores

    • These screened cables are suitable for flexible use in applications of medium mechanical stresses with free movement, without tensile stress or forced movement in dry & moist conditions but not suitable for open air.
    • Used as measuring and control cables in tool machines, conveyor belts, production lines, machinery production and in air conditioning

  • CY Control Flex Cables | Olflex Classic 115 CY

    PVC control cable, shielded and flexible for various applications. Thin and light without inner sheath, nominal voltage: 300/500V

    EMC-compliant
    Thin and light, without inner sheath

  • CY Control Flex Cables | Olflex Classic 400 CP | PUR

    ÖLFLEX® 400 CP – PUR control cable, shielded, for oil- and abrasion-resistant application in industrial machinery and machine tools, in apparatus construction and measuring and regulation technology.

    Shielded, abrasion- and oil-resistant control cable with PUR sheath for increased application requirements

    High mechanical strength
    Good oil resistance
    EMC compliant copper screening

  • CY Control Flex Cables LSOH | Olflex 135CH

    ÖLFLEX® CLASSIC 135 CH – halogen-free control cable, HFFR, shielded and flexible for various applications, nominal voltage 300/500V

    Fine-wire strand made of bare copper wires
    Core insulation: Halogen-free
    Cores twisted in layers
    Halogen-free plastic foil wrapping
    Tinned-copper braiding
    Sheath made of special halogen-free compound, grey (RAL 7001)

  • CY High Flex Dynamic Cable | Olflex FD810CY | PVC

    Highly flexible, shielded control cable with PVC core insulation and PVC inner and outer sheath
    ÖLFLEX® CLASSIC FD 810 CY – shielded power and control cable for versatile use in power chains.
    Extra-fine wire strand made of bare copper wires (class 6)
    Core insulation: PVC
    Cores twisted in layers with short lay lengths
    PVC inner sheath, grey
    Tinned-copper braiding
    Non-woven wrapping
    PVC outer sheath, grey (RAL 7001)

  • CY High Flex Dynamic Cable PUR | Olflex FD810 CP

    Highly flexible, shielded control cable with PVC insulation, inner sheath and abrasion- and oil-resistant PUR sheath
    ÖLFLEX® CLASSIC FD 810 CP – power and control cable for use in power chains in harsh environmental conditions in EMC critical areas.

    Extra-fine wire strand made of bare copper wires (class 6)
    Core insulation: PVC
    Cores twisted in short lay lengths
    Fleece wrapping
    PVC inner sheath
    Tin-plated copper braiding
    Polyurethane sheath, grey (RAL 7001)

  • Robust CY-TM2 CY -KU550C

    CY Robust Control Flex Cable -KU550C – PVC TM2

    CY Control Cables -KU550C – Robust Applications – Number Coded Cores

    • These Cables offer increased durability under harsh conditions thanks to a special TM2 compound
    • Cables conform to CEI20-22/II IEC60332 Cat A for fire behaviour , IEC60754 CEI EN50267-2 Halogen emissions, IEC CEI EN 60811-2-1 Industrial Oil Resistance
    • IEC CEI EN 60811-1-3 Water Absorption
    • They show good flexibility which makes them easy to install and the materials used makes them perfect for damp & wet environments.
  • 2YSLYCY-JB - EMV 1 CABLES - KU7000

    EMV 1 – 2YSLYCY-JB – KU7000 SERVO

    KU7000 EMV1 – Multicore Shielded cables for reduced noise on ground core – 0.6/1kv

    • These EMV cables utilize three power cores, shielded on the assembly and the ground core outside of the shield. The symmetrical disposal of the 3 phases minimizes electromagnetic flux
    • Perfect geometric symmetry and perfect current symmetry the flux would be nil and hence the irradiated wave power
    • TPO / PVC
    • 0.6 / 1KV
