Showing 1–12 of 32 results
Highly Flexible Cables | Drag Chain Cables | FD Cables | Dynamic Installation Cables | Power Chain Cables | Robotic Cables | UL cUL Approved Drag Cables
-
Can Bus Cable-Can Open – Unidrall Bus 1030M -High Flex
Unidrall Bus 1030M -UL/cUL/Ce/ Desina Approved- UL21576 – 1000V -30°/+80°C – POLY / PUR -CAN Open Cables
- Unidrall Bus 1030M cables are suitable for CAN ( Control Area Network) and CAN open cable applications
- Based upon ISO11898 standards series
- Cables are designed for High Flexing Dynamic applications
- UL/cUL/Ce & Desina approved
- Options – 2 x 0.25 | 2 x 2x 0.25 | 2 x 2 x 0.34 | 2 x 0.50
-
CY High Flex Dynamic Cable | Olflex FD810CY | PVC
Highly flexible, shielded control cable with PVC core insulation and PVC inner and outer sheath
ÖLFLEX® CLASSIC FD 810 CY – shielded power and control cable for versatile use in power chains.
Extra-fine wire strand made of bare copper wires (class 6)
Core insulation: PVC
Cores twisted in layers with short lay lengths
PVC inner sheath, grey
Tinned-copper braiding
Non-woven wrapping
PVC outer sheath, grey (RAL 7001) -
CY High Flex Dynamic Cable PUR | Olflex FD810 CP
Highly flexible, shielded control cable with PVC insulation, inner sheath and abrasion- and oil-resistant PUR sheath
ÖLFLEX® CLASSIC FD 810 CP – power and control cable for use in power chains in harsh environmental conditions in EMC critical areas.Extra-fine wire strand made of bare copper wires (class 6)
Core insulation: PVC
Cores twisted in short lay lengths
Fleece wrapping
PVC inner sheath
Tin-plated copper braiding
Polyurethane sheath, grey (RAL 7001) -

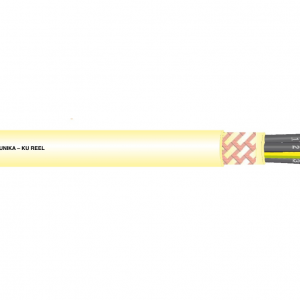

Drum Reeling Cable – KU Reel – XLPE/PUR
KU Reel – Multicore cables for Power & Control Drum Reeling – XLPE/ TPE / PUR
- This KU Reel cable is a control and power cable suitable to be employed in drum reeling systems.
- Designed with special XLPE / TPE / PUR compounds in order to achieve both good flexibility and stress resistance in heavy duty operational conditions.
- 0.6 / 1kv Rated
- Reeling Speed – Up to 150 m/min
- Bend Radius – 10 x cable OD
-
Encoder & Resolver Cable – Unidrall 5100 TPE-PUR
Unidrall 5100 Encoder Cables & Resolver Cables -UL/cUL/Ce/ Desina Approved – UL21179 – 1000V -30°/+80°C – TPE-E /PUR
- These Unidrall 5100 encoder cables & resolver cables are suitable for controlling servo, encoder and resolver motors
- UL/cUL and Desina Approved
- Suitable for Powerchain / High flex applications
- TPE / PUR
- 300 V Rated
- Indramat , Siemens , Heidenhain , Baumuller , Yaskawa , Baldor ,
- Denaher , Rexroth , Bosch, Fanuc , Lenze , Rockwell , Elau , Schneider
-
Encoder & Resolver Cable – Unidrall 5200 TPE-PVC
Unidrall 5200 Encoder Cables & Resolver Cables -UL/cUL/Ce/ Desina Approved – UL21179 – 1000V -5°/+80°C – TPE-E /PVC
- These Unidrall 5200 encoder cables & resolver cables are suitable for controlling servo, encoder and resolver motors
- UL/cUL and Desina Approved
- Suitable for Powerchain / High flex applications
- TPE / PVC
- 300 V Rated
- Indramat , Siemens , Heidenhain , Baumuller , Yaskawa , Baldor ,
- Denaher , Rexroth , Bosch, Fanuc , Lenze , Rockwell , Elau , Schneider
-
High Flex – Unidrall 2100 – PVC /PVC
High Flex Cable -Unidrall 2100 – UL/cUL/Ce Approved – UL2570 – 1000V -10°/+ 80°C – PVC / PVC
- These multicore UL2570 cables are designed for use in high flex dynamic single axis repeat motion applications, commonly used in car washing systems due to their good water and cold resistance.
- PVC / PVC material and rated at 1000V and -10 / +80 degrees.
- 12 x outer diameter bend radius when in chain applications
- UL/cUL and Ce approved
-
High Flex – Unidrall 2100C – Screened -PVC /PVC
High Flex Cable -Unidrall 2100C – UL/cUL/Ce Approved – UL2570 – 1000V -10°/+ 80°C – PVC / PVC
- These multicore UL2570 cables are designed for use in high flex dynamic single axis repeat motion applications, commonly used in car washing systems due to their good water and cold resistance.
- PVC / PVC material and rated at 1000V and -10 / +80 degrees
- TCWB Screened
- 15 x outer diameter bend radius when in chain applications
- UL/cUL and Ce approved
-
High Flex – Unidrall 2105 – TPE /PVC
High Flex Cable -Unidrall 2105 – UL/cUL/Ce Approved – UL21179 – 1000V -5°/+ 80°C – TPE / PVC
- These multicore UL21179 cables are designed for use in high flex dynamic single axis repeat motion applications, commonly used for control & Command of machine tools and assembly lines
- TPE/ PVC material and rated at 1000V and -5 / +80 degrees
- 7.5 x outer diameter bend radius when in chain applications
- UL/cUL and Ce approved
-
High Flex – Unidrall 2105C – TPE /PVC
High Flex Cable -Unidrall 2105C – UL/cUL/Ce Approved – UL21179 – 1000V -5°/+ 80°C – TPE / PVC
- These multicore UL21179 cables are designed for use in high flex dynamic single axis repeat motion applications, commonly used for control & Command of machine tools and assembly lines
- TPE/ PVC material and rated at 1000V and -5 / +80 degrees
- TCWB Screen
- 8.5 x outer diameter bend radius when in chain applications
- UL/cUL and Ce approved
-
High Flex – Unidrall 2106 – TPE /PUR
High Flex Cable -Unidrall 2106 – UL/cUL/Ce Approved – UL21576 – 1000V -30°/+ 80°C – TPE / PUR
- These multicore UL21576 cables are designed for use in high flex dynamic single axis repeat motion applications, commonly used for control & Command of machine tools and assembly lines
- TPE/ PUR material and rated at 1000V and -30 / +80 degrees
- 7.5 x outer diameter bend radius when in chain applications
- UL/cUL and Ce approved
-
High Flex – Unidrall 2106C – TPE /PUR -Screened
High Flex Cable -Unidrall 2106|C – UL/cUL/Ce Approved – UL21576 – 1000V -30°/+ 80°C – TPE / PUR
- These multicore UL21576 cables are designed for use in high flex dynamic single axis repeat motion applications, commonly used for control & Command of machine tools and assembly lines
- TPE/ PUR material and rated at 1000V and -30 / +80 degrees
- 8 x outer diameter bend radius when in chain applications
- UL/cUL and Ce approved
