Showing all 8 results

Switchgear & Hook Up wires | UL1007 | UL1569 | UL1061 | UL 1051 | 2491X | 2491B | 6701B | 6491X | 6491B | Tri-Rated Cables | Panel Wiring | PVC | LSOH

  • 2491B

    Application: suitable in high fire risk places containing a great number of people where low emissions of  smoke and acid gases is required.
    Conductor: Plain annealed flexible copper, class 5
    Sheath: LSZH (Low smoke zero halogen)
    Operating temperature: Maximum 90°C, Minimum bending -15°C

  • 6491B

    Applications: Suitable for power & lighting circuits and building wiring. Also suitable for use as an earth wire.
    Conductor: Plain annealed copper conductor
    Conductor stranding: Class 2 stranded circular or circular compacted
    Insulation: Thermosetting LSF (Low Smoke and Fume) insulation
    Operating temperature: Maximum 90°C Minimum bending -15°C
    Volts: 450/750 volts grade to BS7211

  • 6491X

    Plain annealed stranded copper conductor, PVC insulated, 450/750 volts
    DIN VDE 0281-3
    Applications: Lighting fittings and inside appliances
    Conductor stranding: Class 2 stranded circular or circular compacted
    Operating temperature: Maximum 70°C Minimum bending 0°C

  • Defence Standard 61-12 Pt 6 BS4808 Equipment Wire

    Available in 7/0.2 , 16/0.2 ,  24/0.2 in Type 2 ( 1000V Rated )
    24 /0.2 , 32/0.2 In Type 3 ( 1500V )

    If you require on 500’s or 1000 Mtrs please contact us .

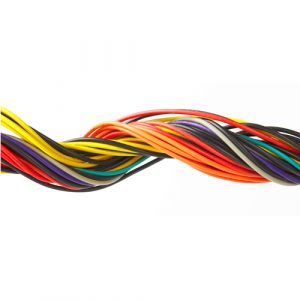

  • Tri-Rated Switchgear Cables

    Tri-Rated Cables To CSA Type TEW, UL Type AWM Style 1015 (Incl. 1028, 1283 and 1284) and BS 6231
    Flexible Class 5 High Temperature flame-retardant single core, rated voltage 600V AC / 1000V DC .

  • Hook up wires

    UL1007 Hook Up Wire

    UL1007 Wires are designed and manufactured for the use of switch ,control metering, instrumentation panels and connections to motor starters and controllers. Conforming to UL1007 style cables are 300V and 80 degrees rated and carry UL Approvals.

  • Hook up wires

    UL1007/1569 Hook Up Wire

    UL1007 /1569 Bi rated  Hook Up Wire Cables are designed and manufactured for the use of switch control metering, instrumentation panels and connections to motor starters and controllers. Conforming to UL1007 & UL1569  styles they are 300V and 105 degrees rated and carry UL/CSA  Approvals.

  • Hook up wires

    UL1061 Hook Up Wire

    UL1061 Hook Up Wire is a 80 Degree 300V rated SR PVC cable used in Internal wiring , Panel Wiring , Machine wiring , vehicle looms , vending machines and various electronic equipment.
