Showing all 4 results
-

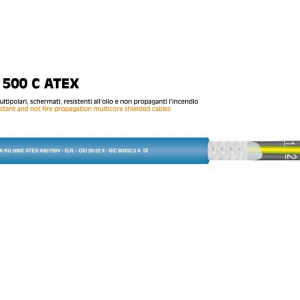

CY Control Flex Cable -ATEX-KU500C Blue PVC / PVC
CY Control Cables Atex – KU500C ATEX – PVC / PVC – Number Coded Cores
- These screened cables offer increased durability under harsh conditions thanks to an enhanced oil resistant sheath and non-fire propagation materials
- CEI20-22/II & IEC60332 Cat A Resistance to oil IEC CEI EN 60811-2-1 and water absorption to IEC CEI EN 60811-1-3
- The cable has a blue outer sheath making it suitable to intrinsically safe circuits
-

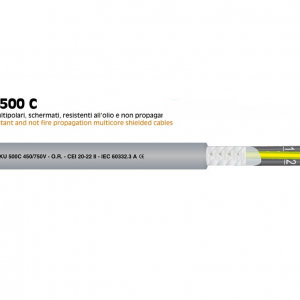

CY Control Flex Cable -KU500C – PVC / PVC
CY Control Cables -KU500C – PVC / PVC – Number Coded Cores
- These screened cables are suitable for flexible use in applications of medium mechanical stresses with free movement, without tensile stress or forced movement in dry & moist conditions but not suitable for open air.
- Used as measuring and control cables in tool machines, conveyor belts, production lines, machinery production and in air conditioning
-

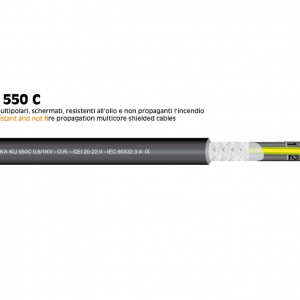

CY Robust Control Flex Cable -KU550C – PVC TM2
CY Control Cables -KU550C – Robust Applications – Number Coded Cores
- These Cables offer increased durability under harsh conditions thanks to a special TM2 compound
- Cables conform to CEI20-22/II IEC60332 Cat A for fire behaviour , IEC60754 CEI EN50267-2 Halogen emissions, IEC CEI EN 60811-2-1 Industrial Oil Resistance
- IEC CEI EN 60811-1-3 Water Absorption
- They show good flexibility which makes them easy to install and the materials used makes them perfect for damp & wet environments.
-
SY Control Flex Cable
SY Control Flex Cables Application range
Product Make-up
Fine-wire strand made of bare copper wires
PVC insulation
Cores twisted in layers
PVC inner sheath, grey
Braid of galvanized steel wires
PVC sheath, transparent
