Showing all 7 results

  • CY High Flex Dynamic Cable | Olflex FD810CY | PVC

    Highly flexible, shielded control cable with PVC core insulation and PVC inner and outer sheath
    ÖLFLEX® CLASSIC FD 810 CY – shielded power and control cable for versatile use in power chains.
    Extra-fine wire strand made of bare copper wires (class 6)
    Core insulation: PVC
    Cores twisted in layers with short lay lengths
    PVC inner sheath, grey
    Tinned-copper braiding
    Non-woven wrapping
    PVC outer sheath, grey (RAL 7001)

  • CY High Flex Dynamic Cable PUR | Olflex FD810 CP

    Highly flexible, shielded control cable with PVC insulation, inner sheath and abrasion- and oil-resistant PUR sheath
    ÖLFLEX® CLASSIC FD 810 CP – power and control cable for use in power chains in harsh environmental conditions in EMC critical areas.

    Extra-fine wire strand made of bare copper wires (class 6)
    Core insulation: PVC
    Cores twisted in short lay lengths
    Fleece wrapping
    PVC inner sheath
    Tin-plated copper braiding
    Polyurethane sheath, grey (RAL 7001)

  • UNIDRALL 100 - HIGH FLEXING DYNAMIC DRAG CHAIN CABLE

    High Flex Cable – Unidrall 100 – TPE/PVC Single Wire

    High Flex Cable -Unidrall 100 -UL/cUL/Ce Approved – UL10681 – 1000V -5°/+80°C – TPE/PVC single wire – 6mm – 240mm

    • These UL 10681 High Flex dynamic cables are designed for use in single axis repeat motion applications
    • This single wire is TPE/PVC and rated at 600/1000V and 80 degrees
    • 6 x outer diameter bend radius when in chain applications
    • UL/cUL and Ce approved
    • Options from 6mm -240 mm
  • Unidrall 100C-Screened single wire high flex cable

    High Flex Cable – Unidrall 100C -Screened TPE/PVC Single Wire

    High Flex Cable -Unidrall 100C -UL/cUL/Ce Approved – UL10681 – 1000V -5°/+80°C – TPE/PVC single wire – 6mm – 240mm

    • These UL 10681 High Flex dynamic cables are designed for use in single axis repeat motion applications
    • This single wire is PVC/PVC and rated at 600/1000V and 80 degrees
    • TCWB Screen
    • 6 x outer diameter bend radius when in chain applications
    • UL/cUL and Ce approved – Style 10681
    • Options from 6mm -240 mm

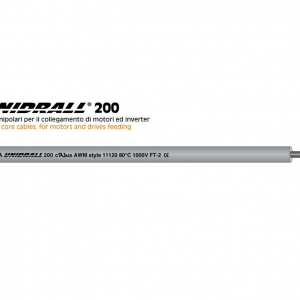

  • Unidrall 200 - PUR high flex single wires

    High Flex Cable – Unidrall 200 – TPE/PUR Single Wire

    High Flex Cable -Unidrall 200 -UL/cUL/Ce Approved – UL11120 – 1000V -30°/+80°C – TPE/PUR single wire – 6mm – 240mm

    • These UL 11120 High Flex dynamic cables are designed for use in single axis repeat motion applications
    • This single wire is TPE/PUR and rated at 600/1000V and 80 degrees
    • 5 x outer diameter bend radius when in chain applications
    • UL/cUL and Ce approved
    • Options from 6mm -240 mm

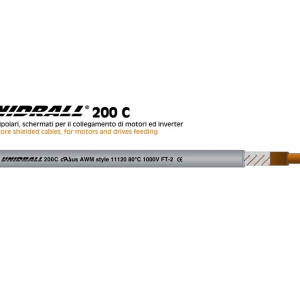

  • Unidrall 200C - Screened High Flex cables

    High Flex Cable – Unidrall 200C – TPE/PUR Screened Single Wire

    High Flex Cable -Unidrall 200C -UL/cUL/Ce Approved – UL11120 – 1000V -30°/+80°C – TPE/PUR single wire – 6mm – 240mm

    • These UL 11120C High Flex dynamic cables are designed for use in single axis repeat motion applications
    • This single wire is TPE/PUR and rated at 600/1000V and 80 degrees
    • TCWB Screen
    • 5 x outer diameter bend radius when in chain applications
    • UL/cUL and Ce approved
    • Options from 6mm -240 mm

  • YY High Flex Dynamic Cable PVC | Olflex FD810

    ÖLFLEX® CLASSIC FD 810 – power and control cable for versatile use in power chains.
    Highly flexible control cable with PVC core insulation and PVC sheath
    Extra-fine wire strand made of bare copper wires (class 6)
    Core insulation: PVC
    Cores twisted in layers with short lay lengths
    Non-woven wrapping
    PVC outer sheath, grey (RAL 7001)
