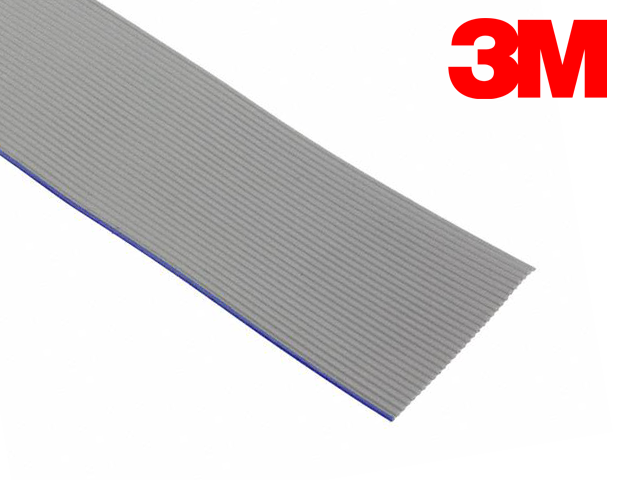

3M- 3749/40 – 40 WAY Ribbon Cable / Flat

The 3749 series from 3M are round conductor flat cable. The ribbon cable has 30 AWG solid conductors on 0.025inch spacing that allows for mass termination.



Categories: , , Tags: , , , , ,
Click to request data sheet

Description

The 3749 series from 3M are round conductor flat cable. The ribbon cable has 30 AWG solid conductors on 0.025inch spacing that allows for mass termination.

  • Grey insulation
  • Tinned solid copper conductor
  • Voltage rating of 150V
  • Operating temperature range -40°C to +105°C
  • UL recognised (Style 20297) in FT2 flame retardant

Additional information

QTY

Per Mtr, Per Reel ( 100FT )
