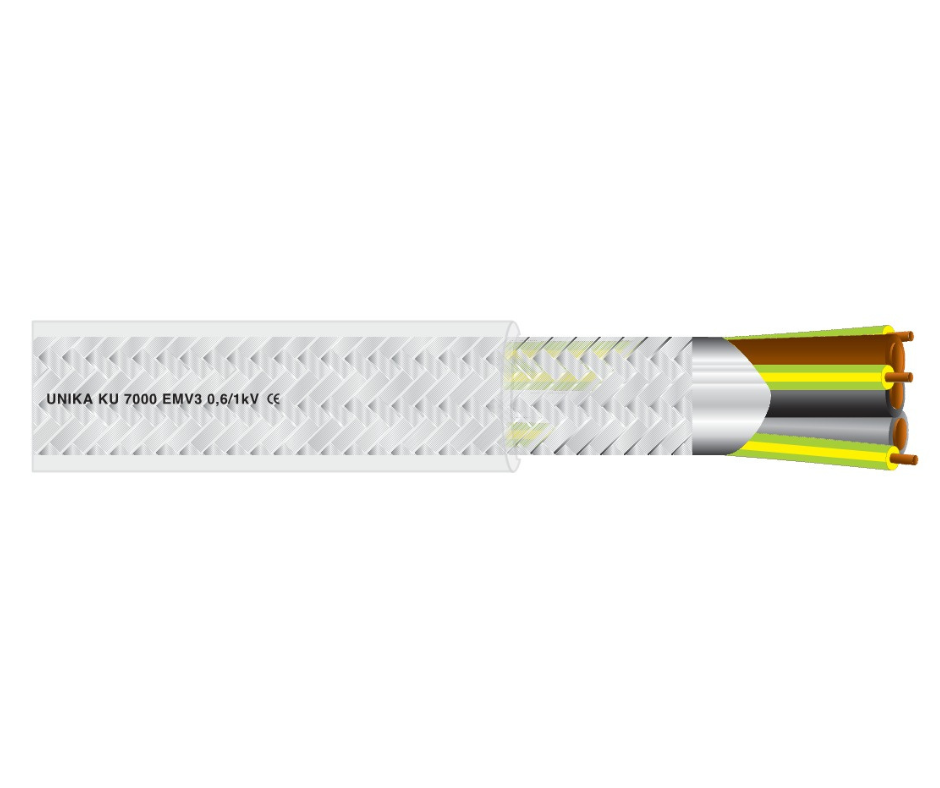

EMV 3 – 2YSLYCY-JB – KU7000 SERVO

KU7000 EMV2 – Multicore Shielded cables for reduced noise on ground core – 0.6/1kv

  • These EMV3 cables have 3 power cores twisted together with the ground core
  • In fact the ground core is split into 3 ground cores placed into star areas
  • Symmetric disposal of the power cores and the almost entirely disturb compensation induced on the ground cores
  • TPO / PVC
  • 0.6 / 1KV
Click to request data sheet

Description

KU7000 EMV3 – Multicore Shielded cables for reduced noise on ground core – 0.6/1kv

These EMV3 cables have 3 power cores twisted together with the ground core. In fact, the ground core is split into 3 ground cores placed into star areas. Screen design is adopted as per solution 2, such a construction is enhanced with respect to this solution because it combines the high shielding effectiveness with remarkable electromagnetic flux reduction. Thanks to symmetric disposal of the power cores and the almost entirely disturb compensation induced on the ground cores.
Other cables in this range include the EMV1 & EMV2
