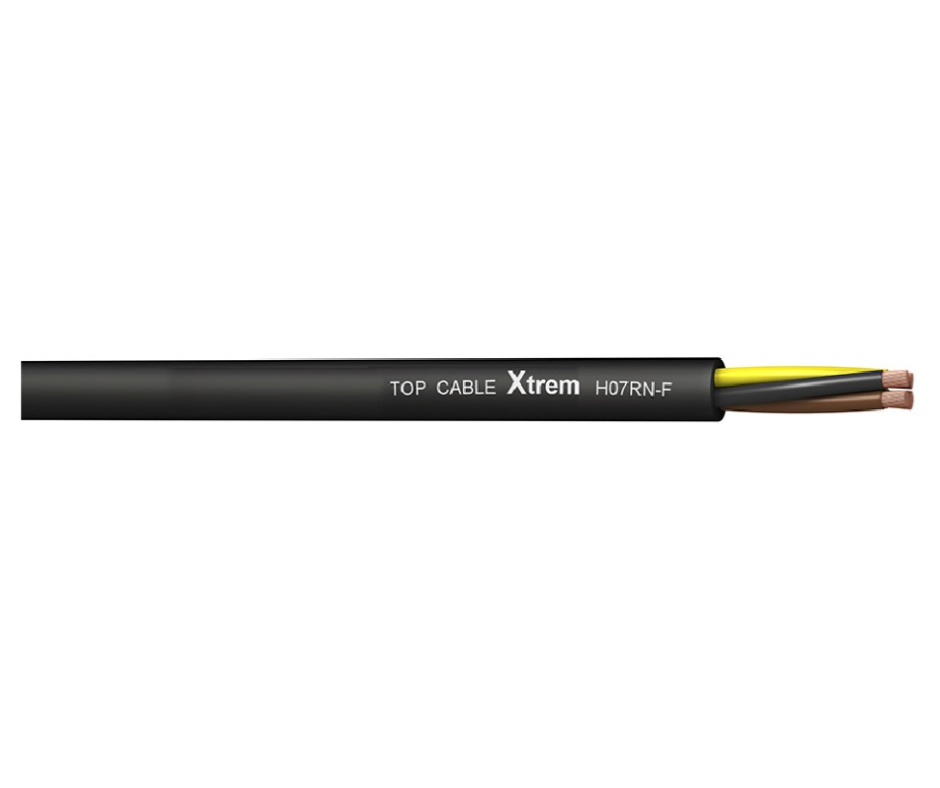

Enhanced H07-RNF – Xtrem- AD8 Approved

Xtrem® H07RN-F rubber cables are designed to supply power to low voltage appliances including electric motors and submersible pumps in deep water installations, as well as many other electrical equipment.

Thanks to its extraordinary flexibility and mechanical strength, the Xtrem® H07RN-F cable is ideal for power transmission in both fixed installation or mobile service. The use nominal voltage up to 1000 V is accepted in fixed protected assemblies.

Xtrem® H07RN-F cables are designed to power all types of electrical equipment including motors and submersible pumps in deep water installations (AD8).





Categories: , , , , , Tags: , , , , , , , , , ,
Click to request data sheet

Description

Enhanced H07-RNF – Xtrem- AD8 Approved

Electrical performance

Low voltage: 450/750 V.

Thermal performance

Maximum conductor temperature: 90°C.

Maximum short-circuit temperature: 250°C (max. 5 s). Minimum service temperature: -40°C (fixed and protected installations) and -25°C (mobile use).

Fire performance

Flame non-propagation according to EN 60332-1 / IEC 60332-1. Reaction to fire CPR: Eca according to EN 50575.

Mechanical performance

Minimum bending radius:  3x cable diameter < 12 mm.  4x cable diameter ≥ 12 mm.

Impact resistance: AG2 Medium severity.

Environmental performance

Chemical & Oil resistance: Excellent. Grease & mineral oils resistance: Excellent. UV Resistant according to EN 50618. Water resistance: AD8 Submersion.  Cable for submersible pumps in drinkable water according to AS/ NZS 4020. Deep wells. AWQC.

Installation conditions

Open Air.  Submersible pumps cable.
