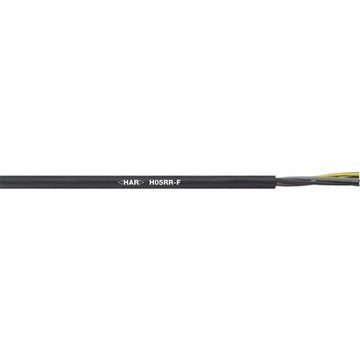

H05-RRF TRS Rubber Flex

Rubber cable for light mechanical stress and hand-held devices used in households, kitchens, offices
H05RR-F, HAR-certified, power and control cable for household and hand-held devices, rubber, braided conductor class 5/flexible, indoor use, flame-retardant
Light mechanical stress

Categories: , , , , , Tags: , , , , ,
Click to request data sheet

Description

H05-RRF Benefits

Type-compliant versions <HAR> certified with the “<HAR>” testing and certification mark for accelerated granting of approvals if final application of cable is within the European CENELEC area

Application range

Hand-held and power supply devices according to EN 50565-2
For lightweight workshop tools that are subject to light loads
According to EN 50565-2: Dry and damp rooms; only temporary use outdoors; not for industrial/commercial or agricultural facilities, except tailors’ workshops; not suitable for connection to industrial power tools
Light & sound technology

Product features

Ozone-resistant

300 / 500 V rated

-25 oC to +60 oC

Norm references / Approvals

<HAR> type certification according to EN 50525-2-21

Product Make-up

Bare copper stranded wire according to HAR standard
Core insulation: Rubber compound, type EI 4
Outer sheath: Rubber compound type EM 3

Additional information

Cores

2, 3, 4, 5
Cross Section (mm)

0.75, 1, 1.5, 2.5
Reel Size

50 Meters, 100 Meters
