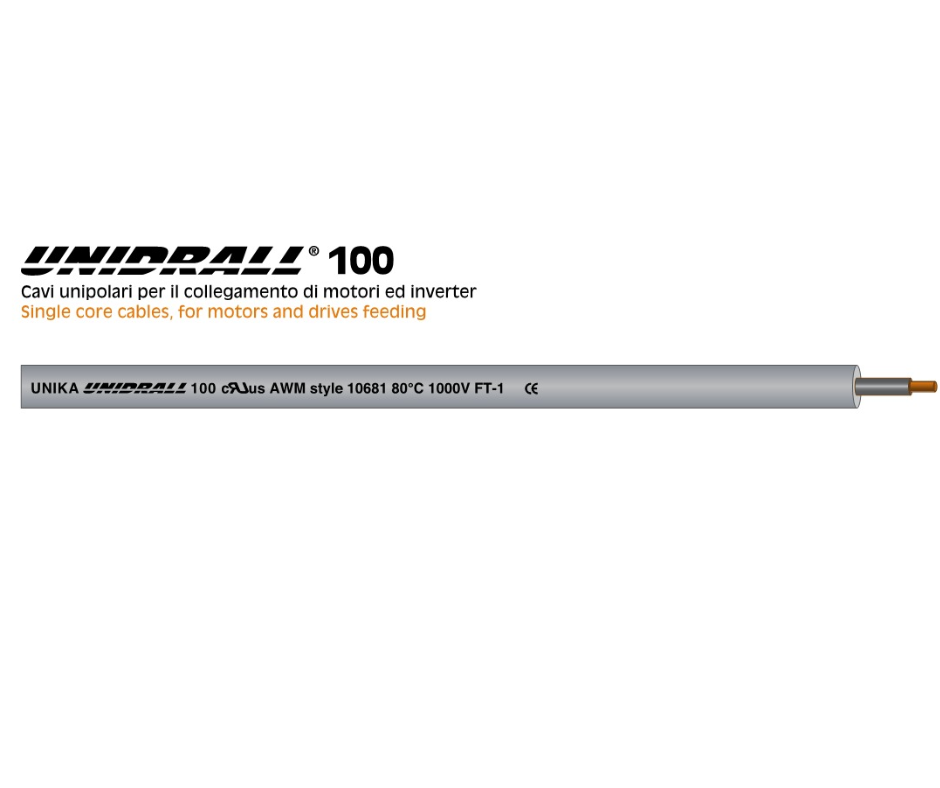

UNIDRALL 100 - HIGH FLEXING DYNAMIC DRAG CHAIN CABLE

High Flex Cable – Unidrall 100 – TPE/PVC Single Wire

High Flex Cable -Unidrall 100 -UL/cUL/Ce Approved – UL10681 – 1000V -5°/+80°C – TPE/PVC single wire – 6mm – 240mm

  • These UL 10681 High Flex dynamic cables are designed for use in single axis repeat motion applications
  • This single wire is TPE/PVC and rated at 600/1000V and 80 degrees
  • 6 x outer diameter bend radius when in chain applications
  • UL/cUL and Ce approved
  • Options from 6mm -240 mm
Categories: , , , , Tags: , , , , , ,
Click to request data sheet

Description

High Flex Cable -Unidrall 100 -UL/cUL/Ce Approved – UL10681 – 1000V -5°/+80°C – TPE/PVC single wire – 6mm – 240mm

These UL 10681 High Flex dynamic cables are designed for use in  single axis repeat motion applications, This single wire is TPE/PVC and rated at 600/1000V and 80 degrees. It has a 6 x outer diameter bend radius when in chain applications and is UL/cUL and Ce approved.
Alternative Options include – Unidrall 200 or the Screened Unidrall 100C
