Unidrall 200C - Screened High Flex cables

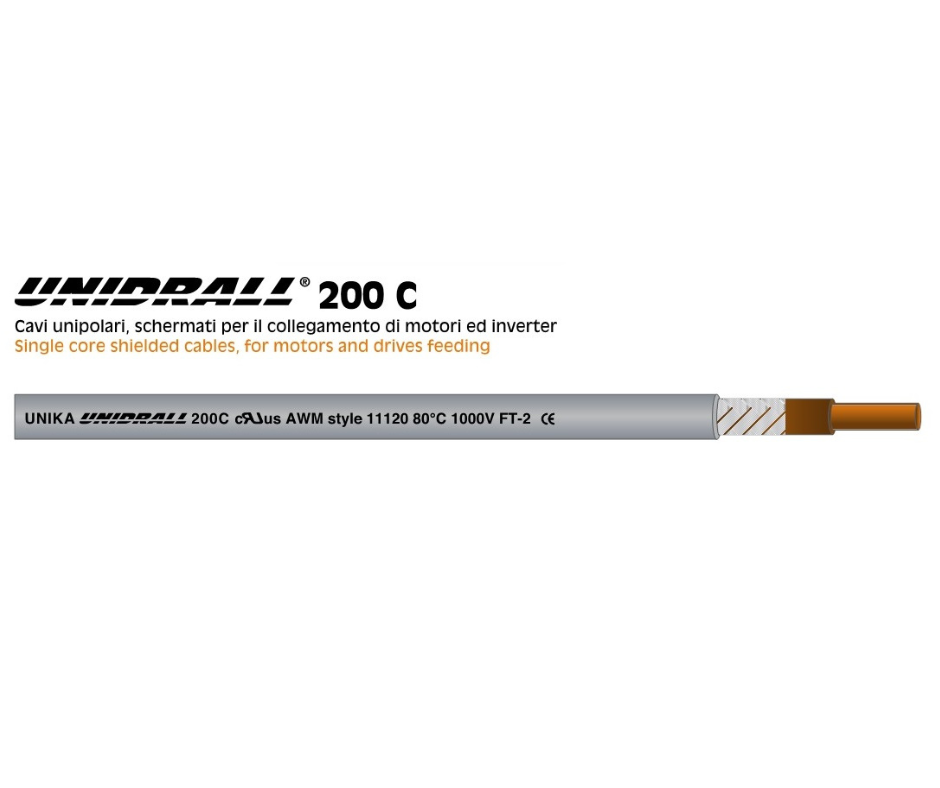

High Flex Cable – Unidrall 200C – TPE/PUR Screened Single Wire

High Flex Cable -Unidrall 200C -UL/cUL/Ce Approved – UL11120 – 1000V -30°/+80°C – TPE/PUR single wire – 6mm – 240mm

  • These UL 11120C High Flex dynamic cables are designed for use in single axis repeat motion applications
  • This single wire is TPE/PUR and rated at 600/1000V and 80 degrees
  • TCWB Screen
  • 5 x outer diameter bend radius when in chain applications
  • UL/cUL and Ce approved
  • Options from 6mm -240 mm
Categories: , , , , Tags: , , , , , , ,
Click to request data sheet

Description

High Flex Cable -Unidrall 200C -UL/cUL/Ce Approved – UL11120 – 1000V -30°/+80°C – TPE/PVC single wire – 6mm – 240mm

These UL 11120C High Flex dynamic cables are designed for use in single axis repeat motion applications, This single wire is TPE/PUR and rated at 600/1000V and 80 degrees. It has a 5 x outer diameter bend radius when in chain applications and is UL/cUL and Ce approved.
Alternative Ranges include Unidrall 100C or the Unscreened Undriall 200
