Unidrall 2500C - Drag Chain Cables

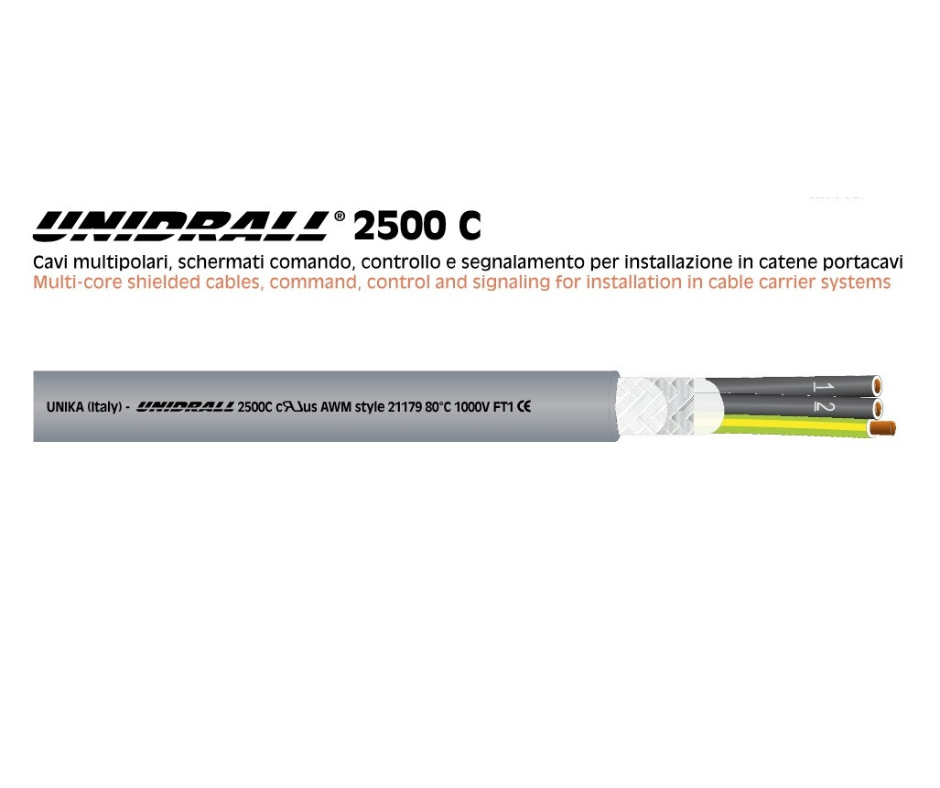

High Flex Cable – Unidrall 2500C – TPE/PVC Screened

High Flex Cable -Unidrall 2500C -UL/cUL/Ce Desina Approved – UL21179 – 1000V -5°/+ 80°C – TPE / PVC

  • The cables in this series have high flexibility, making them suitable for installation in cable carrier systems
  • Dynamic High Flex 10 Million Cycles
  • TCWB Screen
  • 6 x Cable OD bend radius
  • 1000V rated -5 + 80 Degree rated
  • UL / cUL / CE / Desina Approval
Categories: , , , Tags: , , , , , , ,
Click to request data sheet

Description

High Flex Cable -Unidrall 2500C -UL/cUL/Ce Desina Approved – UL21179 – 1000V -5°/+ 80°C – TPE / PVC

The cables in this series have high flexibility, making them suitable for installation in cable carrier systems with good dynamic
performance. This is achieved through carefully chosen PVC compounds that provide both electrical and mechanical suitability. These cables are used for connecting control units, power systems, and instrumentation in machine tools, assembly lines, production lines.

Unscreened Version – Unidrall 2500
