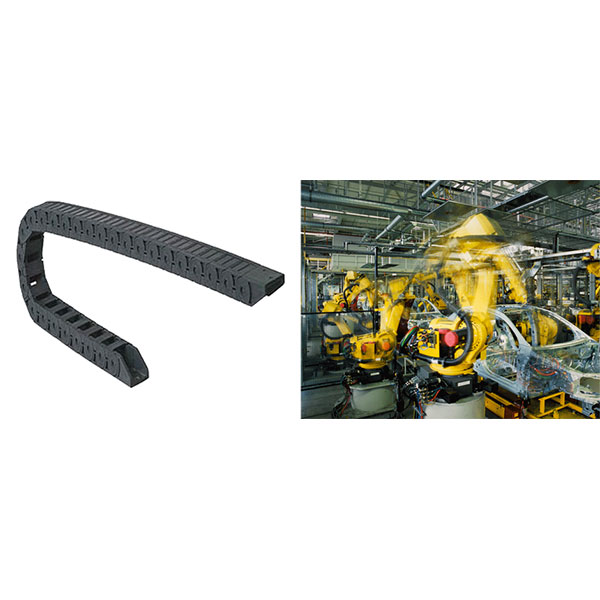

High Flex Cables

High flex cables , highly flexible cables ,dynamic power chain cables , flexible drag chain cables for repeat motion and robotic applications & drag chain.

Content for this range has now been moved HERE



Category:
Click to request data sheet

Description

Unscreened High Flex Cables

High Flex Cable -Unidrall 100 -UL/cUL/Ce Approved – UL10681 – 1000V -5°/+80°C – PVC/PVC single wire – 6mm – 240mm

These UL 10681 High Flex dynamic cables are designed for use in  single axis repeat motion applications, This single wire is PVC/PVC and rated at 600/1000V and 80 degrees. It has a 7.5 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce approved.

High Flex Cable -Unidrall 110 UL/cUL/Ce Approved – UL11120 – 1000V – 5°/+80°C – Poly / PUR single wire – 6mm – 240mm

These UL 11120 High Flex cables are designed for use in high flex dynamic single axis repeat motion applications, This single wire is Polyolefine / PUR material and rated at 600/1000V and 80 degrees. It has a 7.5 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce approved.

High Flex Cable -Unidrall 200 UL/cUL/Ce Approved – UL11120 – 1000V- 30°/+ 80°C – TPE-E / PUR single wire – 6mm – 240mm

These UL 11120 cables are designed for use in high flex dynamic single axis repeat motion applications, This single wire is TPE-E / PUR material and rated at 600/1000V and 80 degrees. It has a 7.5 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce approved.

High Flex Cable -Unidrall 2100 – UL/cUL/Ce Approved – UL2570 – 1000V -10°/+ 80°C – PVC / PVC – 0.5mm – 25mm

These multicore UL2570 cables are designed for use in high flex dynamic single axis repeat motion applications, Commonly used in car washing systems due to their good water and cold resistance. This multicore cable is PVC / PVC material and rated at 1000V and -30 / +80 degrees. It has a 12 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce approved.

HIgh Flex Cable -Unidrall 2500UL -UL/cUL/Ce Desina Approved – UL21179 – 1000V -5°/+ 80°C – POLY / PVC – 0.25mm – 50mm

These multicore UL21179 cables are designed for use in high flex dynamic single axis repeat motion applications, This multicore cable is Polyolefine / PVC material and rated at 1000V and -5 / +80 degrees. It has a 7.5 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce and Desina approved.

High Flex Cable -Unidrall 2510 -UL/cUL/Ce Desina Approved – UL21576 – 1000V -10°/+ 80°C – POLY / PUR – 0.25mm – 50mm

These multicore UL21576 cables are designed for use in high flex dynamic single axis repeat motion applications, This multicore cable is Polyolefine / PUR material and rated at 1000V and -10 / +80 degrees. It has a 7.5 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce and Desina approved.

High Flex Cable – Unidrall 2520 – UL/cUL/Ce Approved – UL21576 – 1000V -30°/+ 80°C – TPE-E / PUR – 0.25mm – 50mm

These multicore UL21576 cables are designed for use in high flex dynamic single axis repeat motion applications, This multicore cable is TPE-E / PUR material and rated at 1000V and -30 / +80 degrees. It has a 5 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce approved.

Screened High Flex Cables

High Flex Cables -Unidrall 100C – UL/cUL/Ce Approved – UL10681 – 1000V -5°/+ 80°C – PVC/PVC single wire – 6mm – 240mm

These screened UL 10681 cables are designed for use in high flex dynamic single axis repeat motion applications, This single wire is PVC/PVC and rated at 600/1000V and -5 / +80 degrees. It has a 7.5 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce approved.

High Flex Cable -Unidrall 110C- UL/cUL/Ce Approved – UL11120 – 1000V -5°/+ 80°C – Poly / PUR single wire – 6mm – 240mm

These screened UL 11120 cables are designed for use in high flex dynamic single axis repeat motion applications, This single wire is Polyolefine / PUR material and rated at 600/1000V and 80 degrees. It has a 7.5 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce approved.

High Flex Cable -Unidrall 200C – UL/cUL/Ce Approved – UL11120 – 1000V- 30°/+ 80°C – TPE-E / PUR single wire – 6mm – 240mm

These screened UL 11120 cables are designed for use in high flex dynamic single axis repeat motion applications, This single wire is TPE-E / PUR material and rated at 600/1000V and 80 degrees. It has a 7.5 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce approved.

High Flex Cable -Unidrall 2100C- UL/cUL/Ce Approved – UL2570 – 1000V -10°/+ 80°C – PVC / PVC – 0.5mm – 25mm

These screened multicore UL2570 cables are designed for use in high flex dynamic single axis repeat motion applications, Commonly used in car washing systems due to their good water and cold resistance. This multicore cable is PVC / PVC material and rated at 1000V and -30 / +80 degrees. It has a 12 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce approved.

High Flex Cable -Unidrall 2500CUL -UL/cUL/Ce Desina Approved – UL21179 – 1000V -5°/+ 80°C – POLY / PVC – 0.25mm – 50mm

These screened multicore UL21179 cables are designed for use in high flex dynamic single axis repeat motion applications, This multicore cable is Polyolefine / PVC material and rated at 1000V and -5 / +80 degrees. It has a 7.5 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce and Desina approved.

High Flex Cable -Unidrall 2510C -UL/cUL/Ce Desina Approved – UL21576 – 1000V -10°/+ 80°C – POLY / PUR – 0.25mm – 50mm

These screened multicore UL21576 cables are designed for use in high flex dynamic single axis repeat motion applications, This multicore cable is Polyolefine / PUR material and rated at 1000V and -10 / +80 degrees. It has a 7.5 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce and Desina approved.

High Flex Cable -Unidrall 2520C – UL/cUL/Ce Approved – UL21576 – 1000V -30°/+ 80°C – TPE-E / PUR – 0.25mm – 50mm

These screened multicore UL21576 cables are designed for use in high flex dynamic single axis repeat motion applications, This multicore cable is TPE-E / PUR material and rated at 1000V and -30 / +80 degrees. It has a 5 x outer diamater bend radius when in chain appliactions and is UL/cUL and Ce approved.
