Unidrall 2501C - Screened high flex cables

High Flex – Unidrall 2105C – TPE /PVC

High Flex Cable -Unidrall 2105C – UL/cUL/Ce Approved – UL21179 – 1000V -5°/+ 80°C – TPE / PVC

  • These multicore UL21179 cables are designed for use in high flex dynamic single axis repeat motion applications, commonly used for control & Command of machine tools and assembly lines
  • TPE/ PVC material and rated at 1000V and -5 / +80 degrees
  • TCWB Screen
  •  8.5 x outer diameter bend radius when in chain applications
  •  UL/cUL and Ce approved
Categories: , , , Tags: , , , , , ,
Click to request data sheet

Description

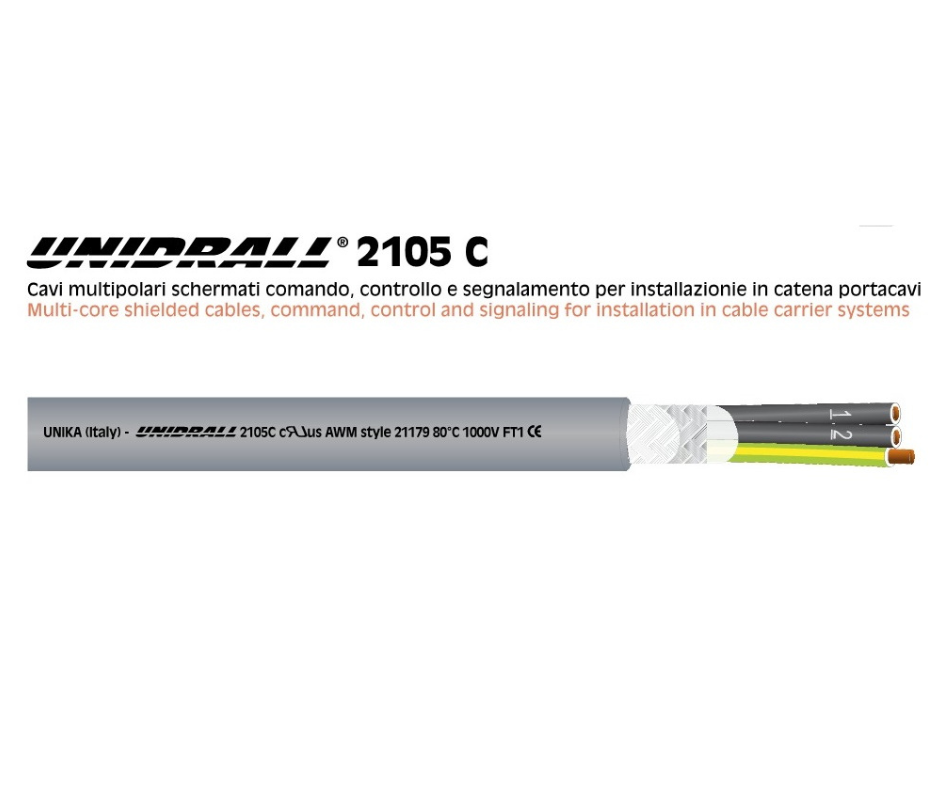

High Flex Cable -Unidrall 2105C – UL/cUL/Ce Approved – UL21179 – 1000V -5°/+ 80°C – TPE / PVC

These multicore UL21179 cables are designed for use in high flex dynamic single axis repeat motion applications, able to resist moderate mechanical stresses of speed & acceleration. This cable family is suitable for systems of control and command of machine tools, assembly lines and connection between control panels. Bend radius of 8.5mm Cable OD
Unscreened option – Unidrall 2105
