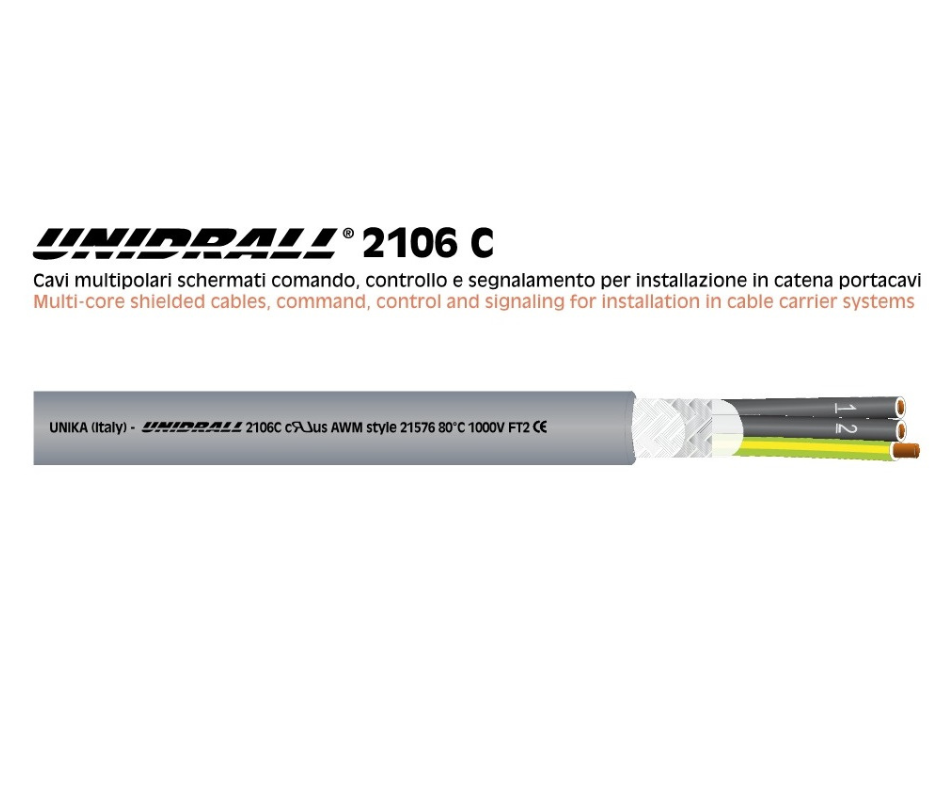

Unidrall 2106C - Screened high flex cables

High Flex – Unidrall 2106C – TPE /PUR -Screened

High Flex Cable -Unidrall 2106|C – UL/cUL/Ce Approved – UL21576 – 1000V -30°/+ 80°C – TPE / PUR

  • These multicore UL21576 cables are designed for use in high flex dynamic single axis repeat motion applications, commonly used for control & Command of machine tools and assembly lines
  • TPE/ PUR material and rated at 1000V and -30 / +80 degrees
  •  8 x outer diameter bend radius when in chain applications
  •  UL/cUL and Ce approved
Categories: , , , Tags: , , , , ,
Click to request data sheet

Description

High Flex Cable -Unidrall 2106C – UL/cUL/Ce Approved – UL21576 – 1000V -30°/+ 80°C – TPE / PUR

These multicore UL21576 cables are designed for use in high flex dynamic single axis repeat motion applications, able to resist moderate mechanical stresses of speed & acceleration. This cable family is suitable for systems of control and command of machine tools, assembly lines and connection between control panels. Bend radius of 8 x Cable OD
Unscreened version available – Unidrall 2106
