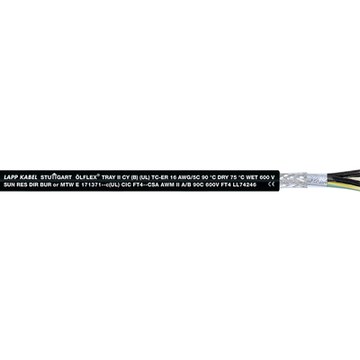

Olflex Tray II CY UL TC ER Tray Rated Cables

Tray Rated , Exposed Run UL ,TC/ER, MTW, WTTC Approved Cable
Fine-wire strand made of bare copper wires
Insulation: PVC+nylon sheath (PA skin)
Aluminum-coated foil
Tinned-copper braiding
Outer jacket: Specially formulated thermoplastic polymer
Color of the outer jacket: Black

Categories: , , Tags: , , , , , , , , , ,
Click to request data sheet

Description

ÖLFLEX®  Tray II CY -Benefits

Many certifications/ use types

Cost-saving, fast installation omitting protection systems

75 °C WET Rating + Sunlight Resistant Rating: Outdoor use in the USA

Electromagnetic field screening

Application range

Industrial machinery; plant engineering

Unprotected 600V operation on cable tray in the USA, incl. 6 ft. Exposed Run laying sections

Compliant with Tool machines: (UL) MTW

Outdoor use and Direct Burial in the USA

USA Wind Turbine Tray Cable (WTTC)

Product features

Flame-retardant according to CSA FT4
UL Vertical-Tray Flame Test

Oil-resistant according to UL OIL RES I & II

Water-resistant, UL 75°C WET rating

UV resistant (SUN RES), Ozone resistant

Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Norm references / Approvals

  • USA: (UL) TC-ER [E171371], (UL) MTW [E155920], (UL) WTTC [E323700], Submersible Pump (14 – 2 AWG), (UL) PLTC-ER (18 – 12 AWG) [E216027], (UL) ITC-ER (18 – 12 AWG) [E196134], (UL) DP-1 [E233406], UL AWM (18 – 2 AWG) [E100338]
  • UL OIL RES I/ II, 75°C WET, 90°C DRY, SUN RES, DIR BUR, NEC/NFPA 70, NFPA 79
  • CAN: c(UL) CIC/ TC 600V FT4 (< 250 kcmil) [E171371], CSA AWM I/II A/B FT1

Product Make-up

  • Fine-wire strand made of bare copper wires
  • Insulation: PVC+nylon sheath (PA skin)
  • Aluminum-coated foil
  • Tinned-copper braiding
  • Outer jacket: Specially formulated thermoplastic polymer
  • Color of the outer jacket: Black

Additional information

Cores

3, 4, 5, 7, 12, 18, 25
Size

1mm, 1.5mm, 2.5mm, 4mm, 6mm, 10mm, 16mm
Reel Size

50 Mtrs, 100 Mtrs, 250 Mtrs, 500 Mtrs, Over 500 Call Us
