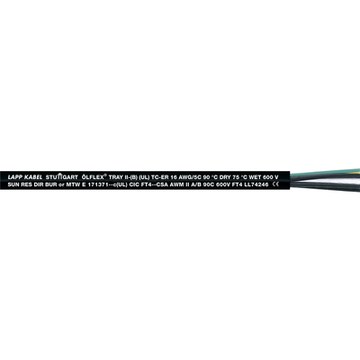

Olflex Tray II UL TC ER Tray Rated Cables

Tray Rated Exposed Run Cables TC/ER , MTW , WTTC, UL Approved Cable
Flame-retardant according to CSA FT4
UL Vertical-Tray Flame Test
Oil-resistant according to UL OIL RES I & II
Water-resistant, UL 75°C WET rating
UV resistant (SUN RES), Ozone resistant
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Categories: , , , , Tags: , , , , , , , , , , , , ,
Click to request data sheet

Description

ÖLFLEX® Tray II -Benefits

  • Cost-saving, fast installation omitting protection systems
  • Many certifications/ use types
  • 75 °C WET Rating + Sunlight Resistant Rating: Outdoor use in the USA

Application range

  • Industrial machinery; plant engineering
  • Unprotected 600V operation on cable tray in the USA, incl. 6 ft. Exposed Run laying sections
  • Compliant with Tool machines: (UL) MTW
  • Outdoor use and Direct Burial in the USA
  • USA Wind Turbine Tray Cable (WTTC)

Product features

  • Flame-retardant according to CSA FT4
    UL Vertical-Tray Flame Test
  • Oil-resistant according to UL OIL RES I & II
  • Water-resistant, UL 75°C WET rating
  • UV resistant (SUN RES), Ozone resistant
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)

Norm references / Approvals

  • USA: (UL) TC-ER [E171371], (UL) MTW [E155920], (UL) WTTC [E323700], Submersible Pump (14 – 2 AWG), (UL) PLTC-ER (18 – 12 AWG) [E216027], (UL) ITC-ER (18 – 12 AWG) [E196134], (UL) DP-1 [E233406], UL AWM (18 – 2 AWG) [E100338]
  • UL OIL RES I/ II, 75°C WET, 90°C DRY, SUN RES, DIR BUR, NEC/NFPA 70, NFPA 79
  • CAN: c(UL) CIC/ TC 600V FT4 (< 250 kcmil) [E171371], CSA AWM I/II A/B FT1

Product Make-up

  • Fine-wire strand made of bare copper wires
  • Insulation: PVC+nylon sheath (PA skin)
  • Outer jacket: Specially formulated thermoplastic polymer
  • Color of the outer jacket: Black

Additional information

Cores

3, 4, 5, 7, 12, 18, 25
Conductor Size

1mm, 1.5mm, 2.5mm, 4mm, 6mm, 10mm, 16mm
Reel Size

50 Mtrs, 100 Mtrs, 250 Mtrs, 500 Mtrs
