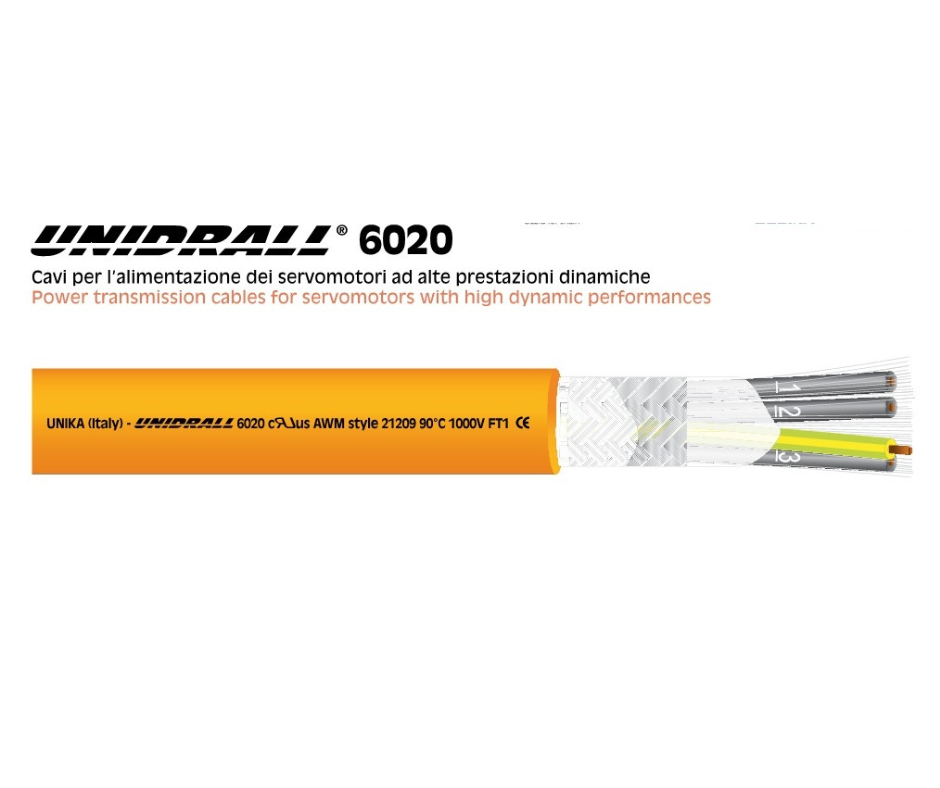

Unidrall 6020 - New - High Performance

Servo Cables – Unidrall 6020 – TPE / PUR

Servo Cable Unidrall 6020 -UL/cUL/Ce/ Desina Approved – UL21209 – 1000V -50°/+90°C – TPE-E / PUR – High Performance

  • These Unidrall 6020 servo cables are a High Performance Servo Motor cable
  • TPE / PUR
  • Suitable for Drag Chains & High Flex applications
  • 1000V Rated / -50/+90 Dynamic & -50/+90 Fixed
  • UL cUL style 21209 + Desina Approval – ECOLAB – Lloyds Registered
  • Range from 1 mm – 50 mm
  • Speed – 300 m/min  / Acceleration 40 m/s / 15 Million Cycles
Categories: , , , , Tags: , , , , , , ,
Click to request data sheet

Description

Servo Cable Unidrall 6020 -UL/cUL/Ce/ Desina Approved – UL21209 – 1000V -50°/+90°C – TPE-E / PUR – High Performance

These cables are used for the power supply of servomotors in various industrial applications. The overall shielding is optimized to minimize electromagnetic interference. The polyurethane jacket compound meets the requirements of UL and CSA standards,
providing the cable with excellent resistance to abrasion and high resistance to oils and chemical agents. They are suitable for installation in drag chains, ensuring high mechanical performance. These cables are also suitable for outdoor use. Approved DESINA. Approved UL/CSA: 90°C 1000V style 21209
