SY Control Flex Cable | Olflex Classic 110SY

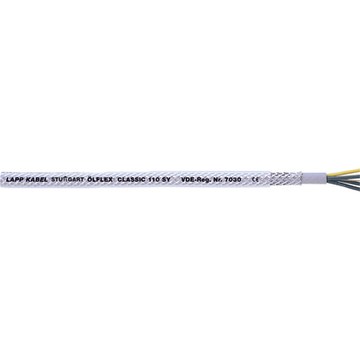

Lapp Olflex Classic 110 SY – Galvanized Steel Wire Braid  PVC control cable with transparent outer sheath
ÖLFLEX® CLASSIC 110 SY – PVC control cable, VDE-registered and with steel wire braiding. Flexible cable for various applications, nominal voltage: 300/500V
Steel wire braiding for additional mechanical protection

Categories: , , Tags: , , , , ,
Click to request data sheet

Description

 ÖLFLEX® Classic 110SY Benefits

Additional mechanical protection thanks to steel wire braiding
High electrical performance due to 4 kV test voltage

Application range

Plant engineering
Industrial machinery
Heating and air-conditioning systems
Areas with increased requirements regarding mechanical stress
For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load

Product features

Flame-retardant according IEC 60332-1-2
Good chemical resistance, see catalogue appendix T1

Norm references / Approvals

VDE reg. no. 7030

Product Make-up

Fine-wire strand made of bare copper wires
PVC insulation LAPP P8/1
Cores twisted in layers
PVC inner sheath, grey
Braid of galvanized steel wires
PVC sheath, transparent



Additional information

Cores

2, 3, 4, 5, 7, 12, 18, 25, 34, 50
Cross Section (mm)

0.5, 0.75, 1, 1.5, 2.5, 4, 6, 10, 16, 25, 35
Real Size

Per Meter, 50 Meters, 100 Meters, 250 Meters, 500 Meters, Over 500 – Call Us
