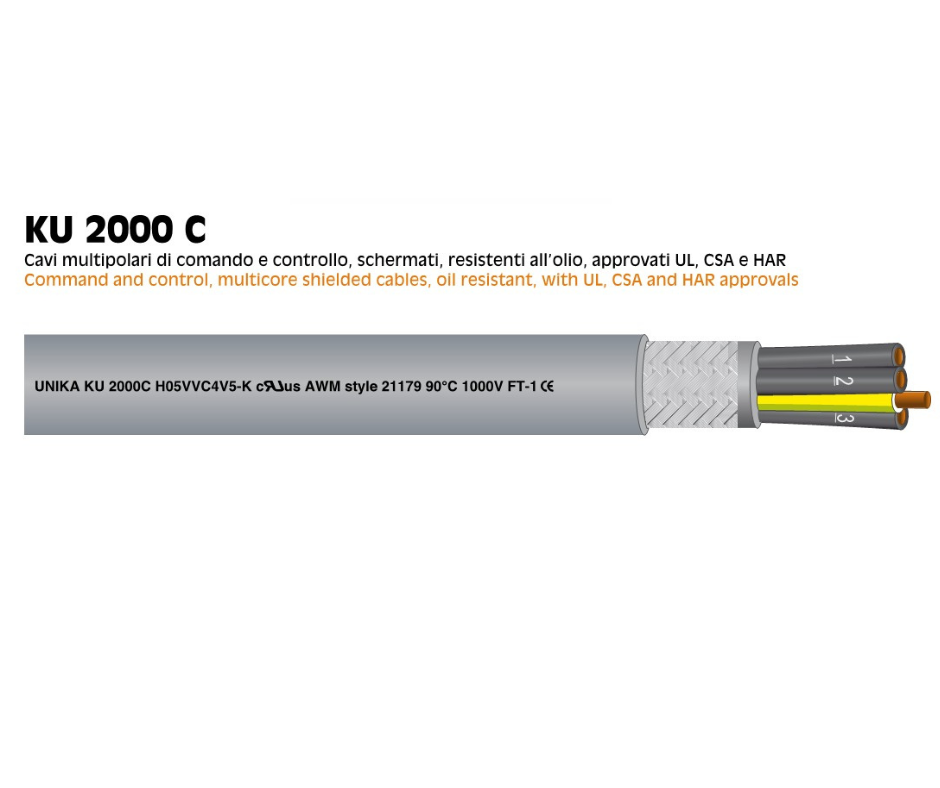

KU2000C - Screened UL c UL HAR approved Cables

CY – UL cUL HAR Approved -KU2000C – PVC/PVC

UL/cUL/Ce/HAR Approved Cable – KU2000C – UL21179 – 1000V + 90°C – Screened PVC/PVC

  • UL /cUL /Ce / HAR approved ( H05VV5-F )
  • TCWB Screen
  • 1000V Rated
  • -30/+90 degrees fixed -5/+90 Flexing
  • Range from 0.5 to 2.5 mm
Categories: , , , , Tags: , , , , , , , , ,
Click to request data sheet

Description

UL/cUL/Ce/ HAR Approved Cable – KU2000C – UL21179 – 1000V + 90°C – Screened PVC/PVC

These UL Approved Cables conform to UL21179 and are suitable for flexible use in applications of medium mechanical stresses with free movement, without tensile stress or forced movement in dry & moist conditions but not suitable for open air. Used as measuring and control cables in tool machines, conveyor belts, production lines, machinery production. UL, cUL CE & Harmonized approved and rated at 600/1000V making it suitable for the American and Canadian markets.
Alternative Unscreened Version – KU2000
